Transformation cabin
Our transformation cabin is a transportable compact shelter, suitable for secondary distribution grid with ring configuration and remotely controlled. The short assembly and construction phases in the factory allow a quick installation on site.
OIL TRANSFORMER – SKID SOLUTION
The skid solution is a prefabricated plug-in compact substation, designed to elevate energy from PV plants to elevating substations.
It is equipped with power distribution components:
- Medium voltage switchgear - up to 40.5 kV
- Oil-type transformer - up to 10000kVA
- Low voltage switchboard
- Automation system for the control and supervision
- Inverter, bus duct, auxiliary equipment
DRY-TYPE TRANSFORMER – KIOSK SOLUTION
The Kiosk solution is a prefabricated plug-in compact substation, equipped with power distribution components:- Medium voltage switchgear - up to 40.5 kV
- Dry-type transformer - up to 5000kVA
- Low voltage switchboard
- Automation system for the control and supervision
- Inverter, bus duct, auxiliary equipment
Technical features
It can be supplied as a centralized inverter or as a string inverter, for large photovoltaic plants.
Transportation methods: It can be lifted from lifting brackets and placed by a crane on the concrete foundation.
Alternatively, it can be dragged by a tractor. Dragging is done by attaching the steel holding lines with hooks to the ends of the cabin, where the anchoring points are.
Advantages
Plug & play
Floating PV plant
Customized internal configurations
Compact and small size structure
Suitable for road and sea transportation
Short installation times
Resistant to elements and hostile environmental conditions
Applications
Utility on primary and secondary distribution grids
Photovoltaic plants
Battery storage
Wind power stations
Suitable for floating applications
Related projects to Transformation cabin
MV Transformation cabin 40.5kV for photovltaic system
Artemisa (Cuba)

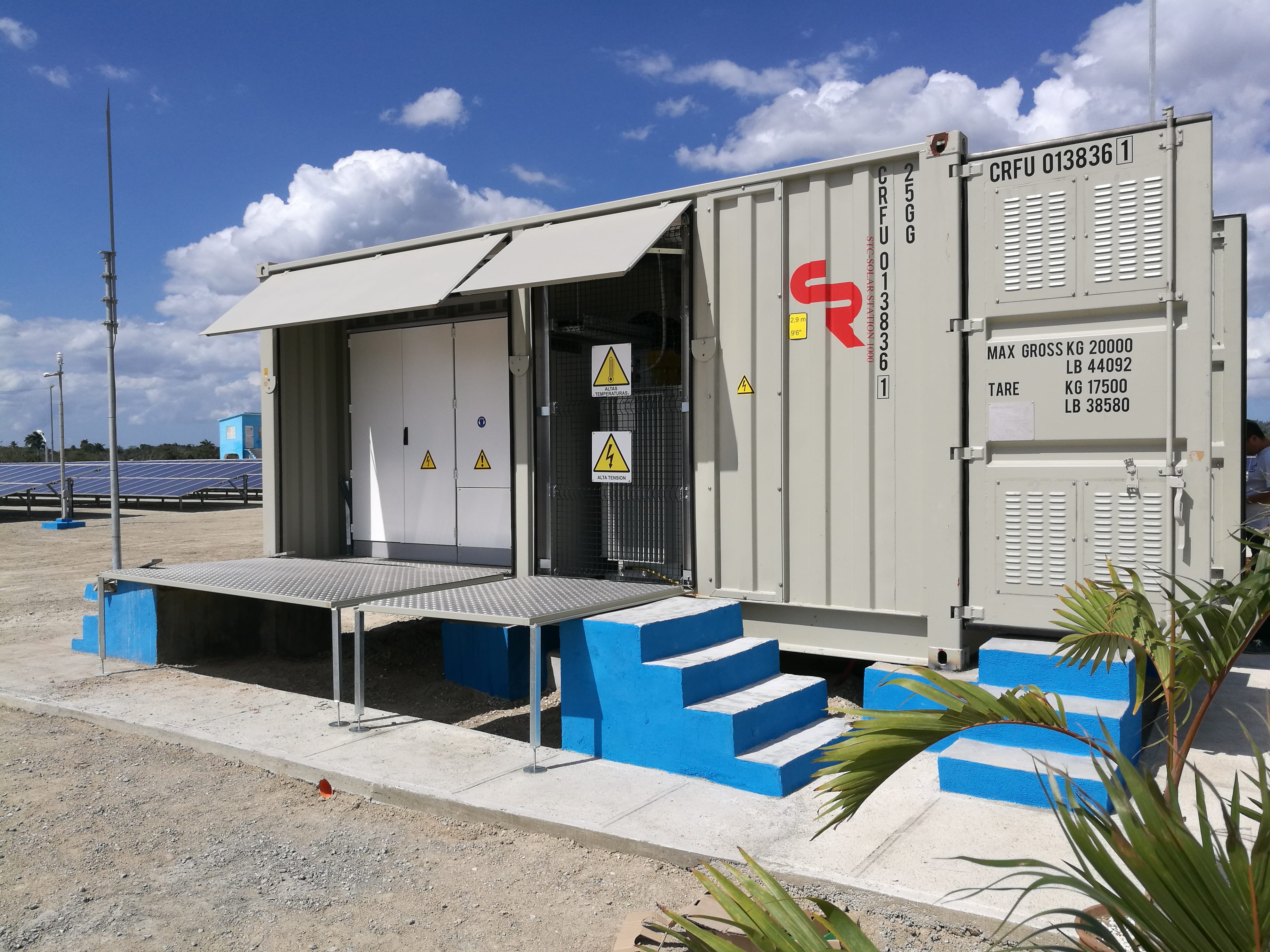

Design, construction and commissioning of a grid connection cabin, STC-Kiosk, for a 7MW photovoltaic plant located in the Province of Artemisa.
N. 4 MV E-Houses 34.5kV for industrial area
Havana (Cuba)
The project was addressed to the developing industrial center of Artemisa and included the engineering study, construction, and commissioning of compact substations for energy distribution and electrical equipment for the substation interconnection.
