Transformation cabins with ring configuration

Latin America

Description

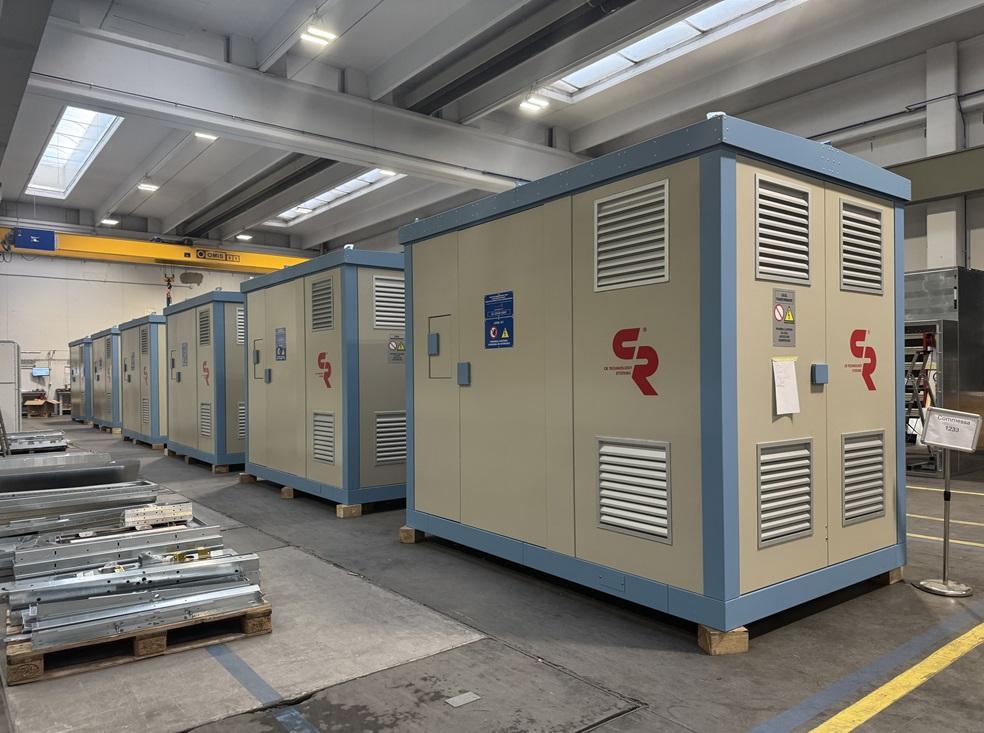

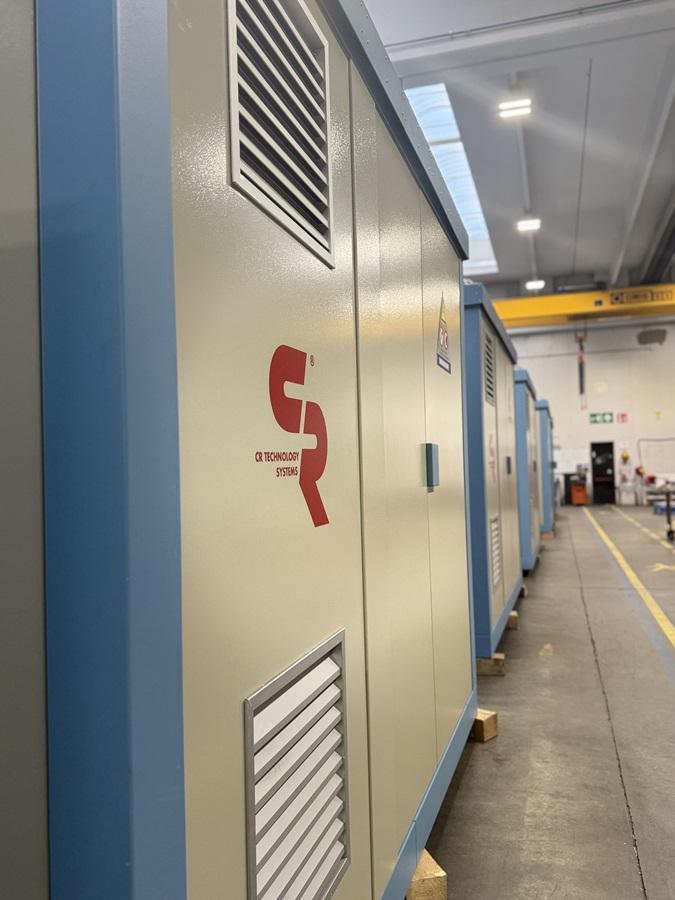

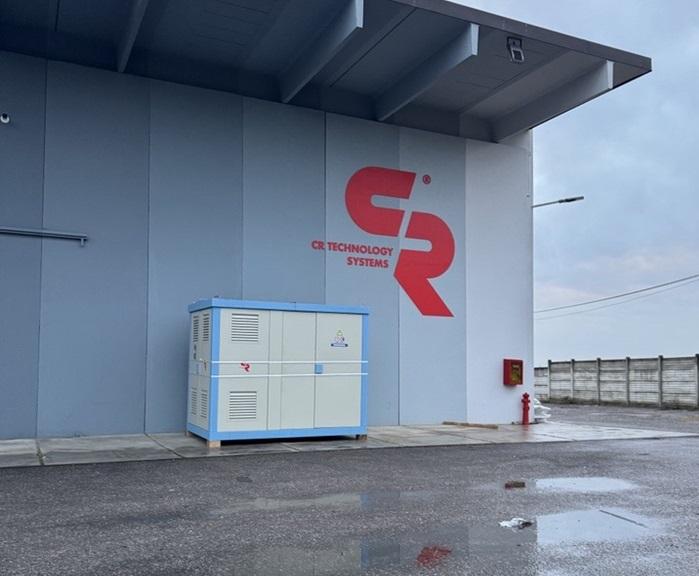

We have studied, designed, manufactured and delivered the following plug and play modular transformation cabins, STC-Kiosk, with ring configuration.

  • N. 5 STC-Kiosk transformation centers (50kVA 34.5/0.415/0.240 kV)
  • N. 2 STC-Kiosk transformation centers (300kVA 34.5/0.415/0.240 kV)
  • N. 2 STC-Kiosk transformation centers (630kVA 34.5/0.415/0.240 kV)
Each kiosk features:
  • 36kV 630A 16kVA MV switchgear
  • Transformer
  • Euro P&C and RTU for public lighting systems
  • Fiscal meter
  • Fire protection system

The main challenge is to create uniform substation dimensions to accommodate transformer capacities ranging from 50kVA to 630kVA, ensuring our client’s specific requirements were met seamlessly.
