Skid transformation cabin 36kV 4.4MVA
Trino Vercellese (Italy)
Country
Year
Description

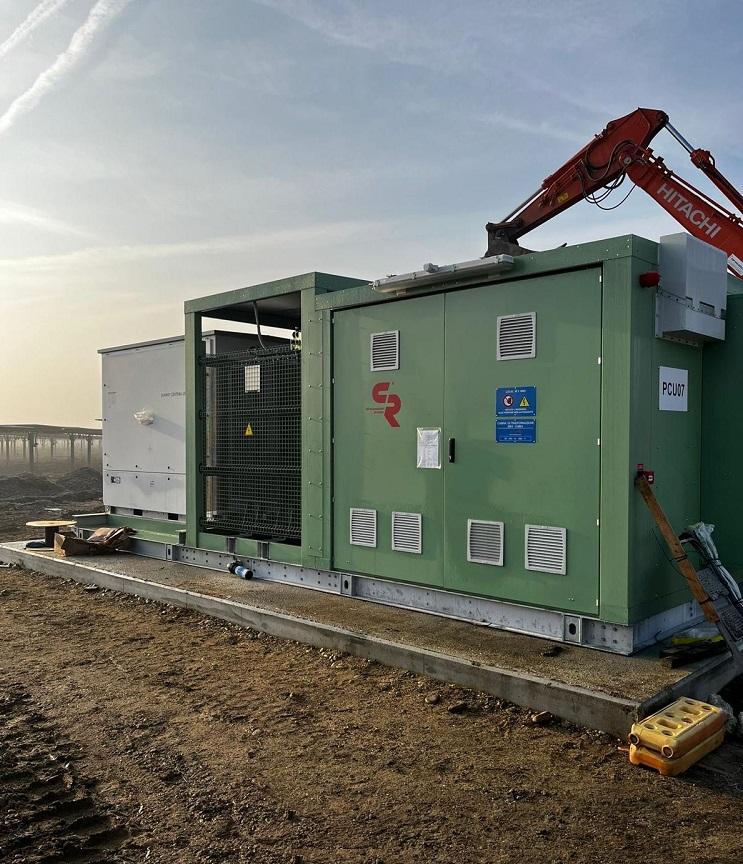

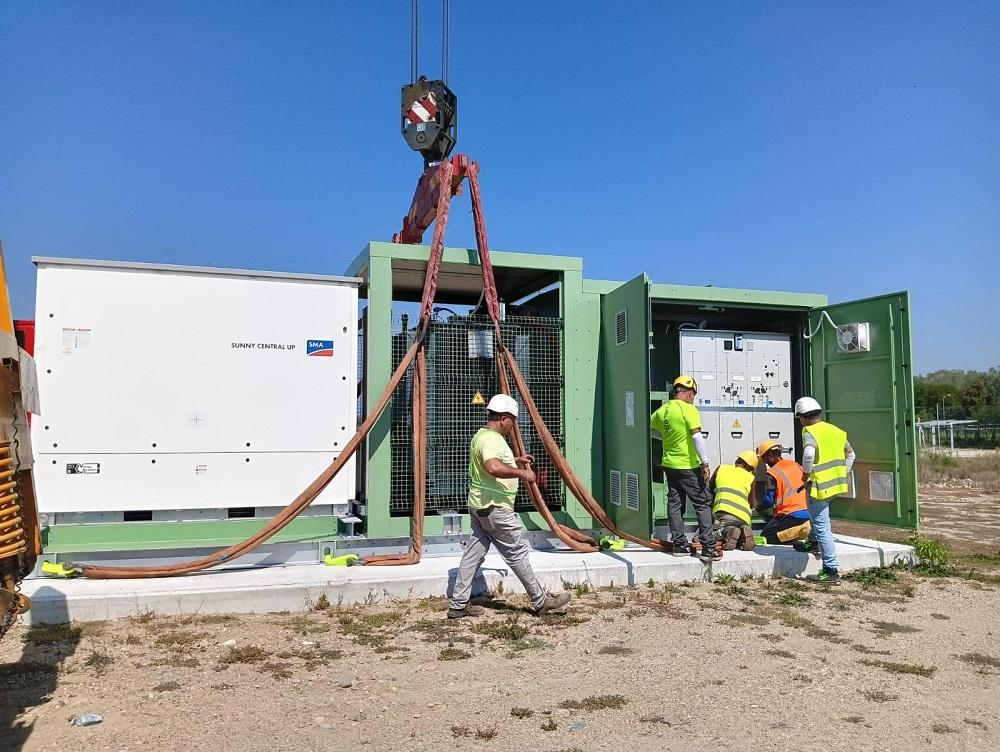

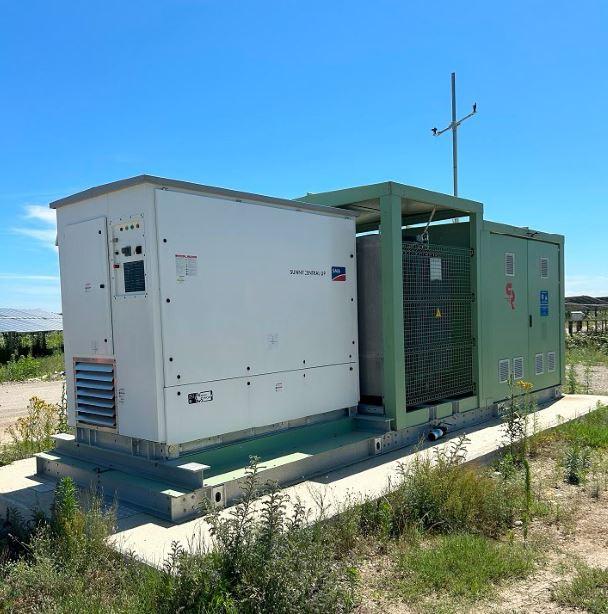

We have designed, manufactured and carried out the commissioning of STC-Skid transformer substations destined for the Trino Vercellese photovoltaic plant.
The solar park will be built on an area of about 130 hectares and will have a power of 86 MW. It is one of the largest solar plants in northern Italy, which when fully operational will produce approximately 130GWh each year, avoiding the emission of approximately 56,000 tonnes of CO2 and the use of 29 million cubic meters of gas, replacing it with locally produced renewable energy.
Our plug-in solution tested by an accredited body, has been certified according to IEC62271-202 and approved according to ENEL specifications. The internal arc test was performed with an MV switchgear 36kV 630A 20kA (1s) installed inside the transformation cabin on a skid, capable of protecting the operator and the integrity of the system in the event of a short circuit.
