MV E-House 24kV for photovoltaic plant
Trecate (Italy)
Country
Year
Location
Solutions
Products
Description
Tailor-made project for the implementation of electrical equipment interconnected to the new photovoltaic system in Trecate (Novara), committed to us by a large company in the oil & gas field, which will provide green energy to a refinery plant.

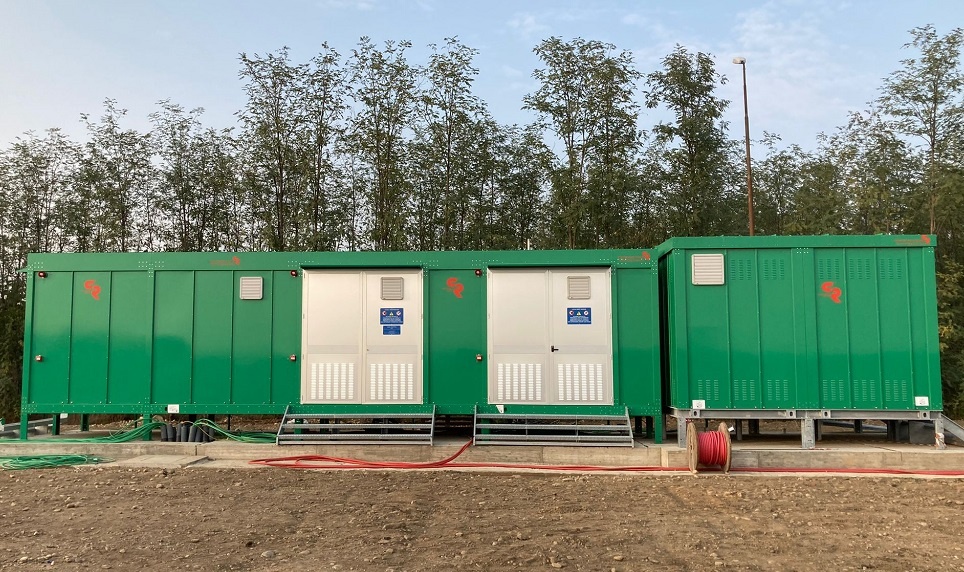

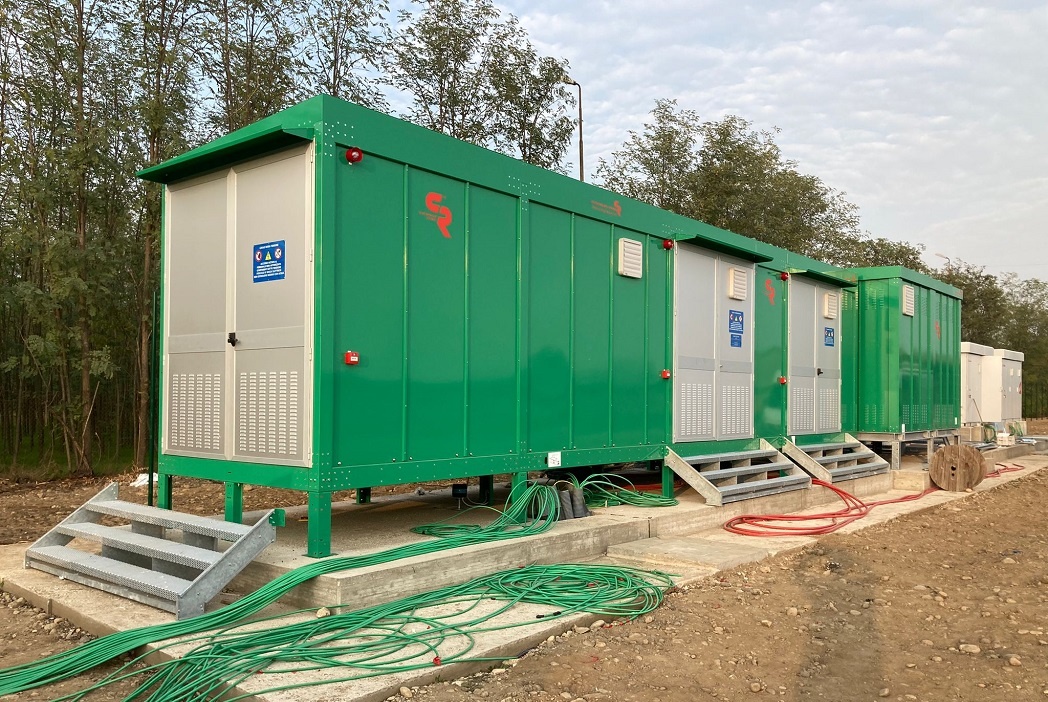

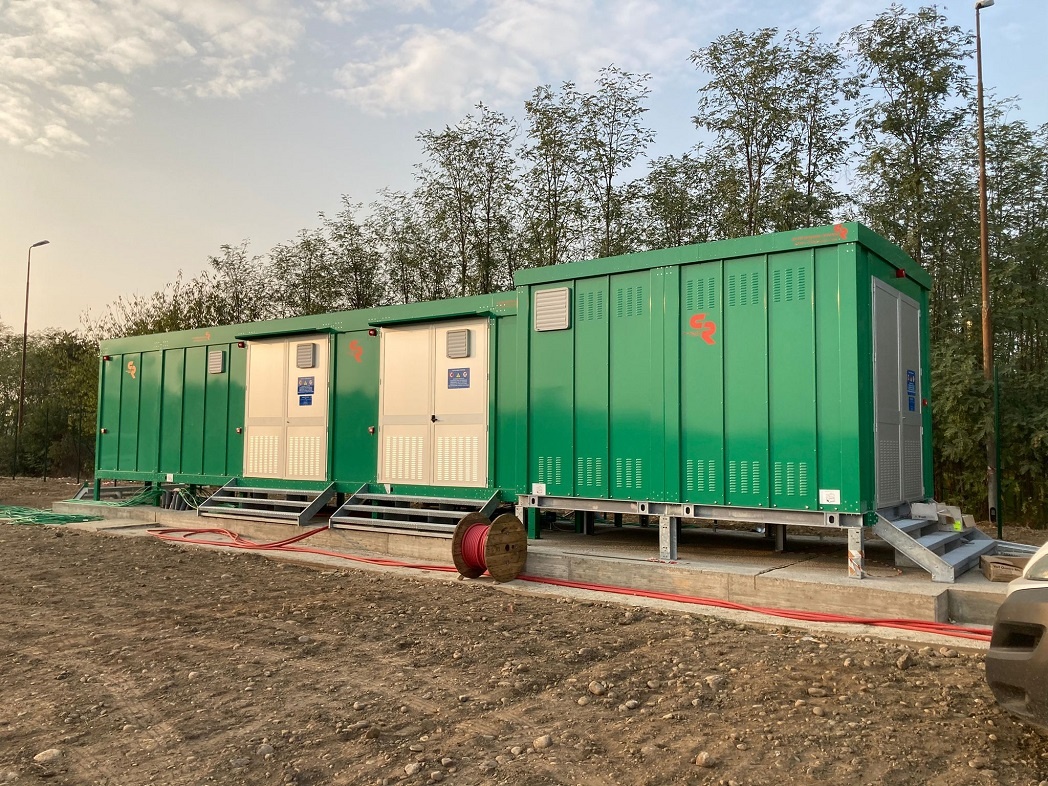

Design, construction, commissioning of an STC-Box switching station 24kV and an STC-Kiosk transformation cabin 4.6MVA on raised basement, equipped with air-insulated (AIS) medium-voltage (MV) electrical switchgear (n. 4 cubicles) 24kV 630A 16kA, low-voltage (LV) switchboard, SCADA system, power and auxiliary transformers, firefighting system, auxiliary equipment.
Moreover, we have realized an air-insulated medium-voltage switchgear Normal Clad 24kV 1250A 16kA to be integrated into the electrical substation of the plant.
