N. 6 Photovoltaic Plants for a total power of 10MW

Havana, Pinar del Rio, Isla de la Juventud, Cienfuegos, Guantanamo (Cuba)

Modular compact substation with electrical panels

Country

Year

2015

Location

Havana, Pinar del Rio, Isla de la Juventud, Cienfuegos, Guantanamo

Solutions

Products

Description

It is the first major project concerning 6 photovoltaic plants distributed in five different Cuban provinces, which has the function of reducing CO₂ emissions and safeguarding the surrounding environment, threatened by the increasing rate of tourism.

Construction of 6 photovoltaic plants distributed as follows:

Pinar del Rio: 2.5 MW, n.10.160 of photovoltaic modules, with a total power of 2.540kWp, medium-voltage ATR-Mix switchgears 36kV, STC-Box Solar Station 2.000 and STC-Box Solar Station 500, SCADA system, inverter.1

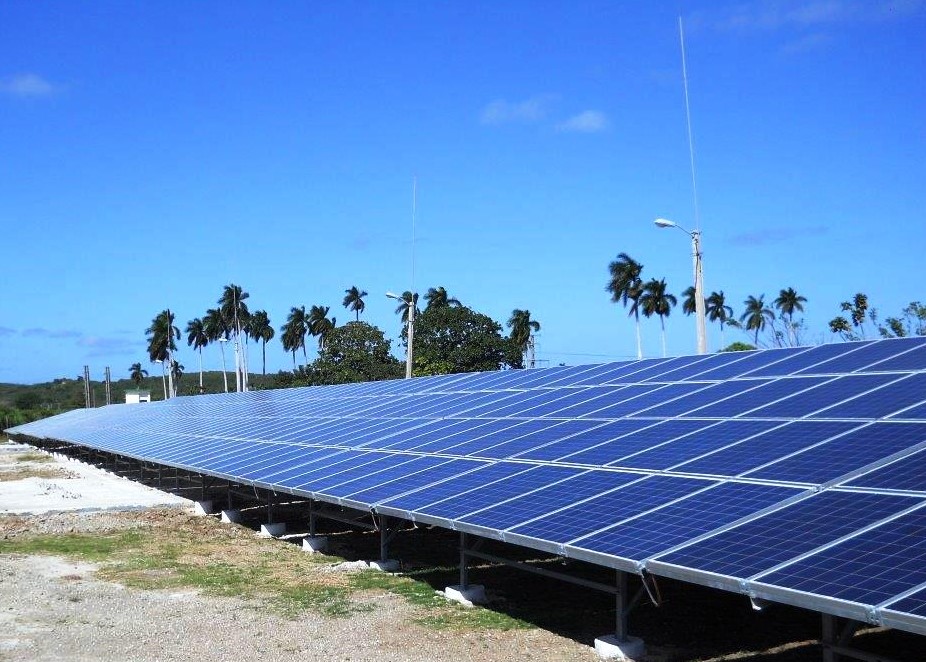

Cinefuegos: 3 MW, n. of 12.000 photovoltaic modules, with a total power of 3.000kWp, medium-voltage ATR-Mix switchgears 36kV, STC-Box Solar Station 1.000 and STC-Box Solar Station 2.000, SCADA system, inverter.

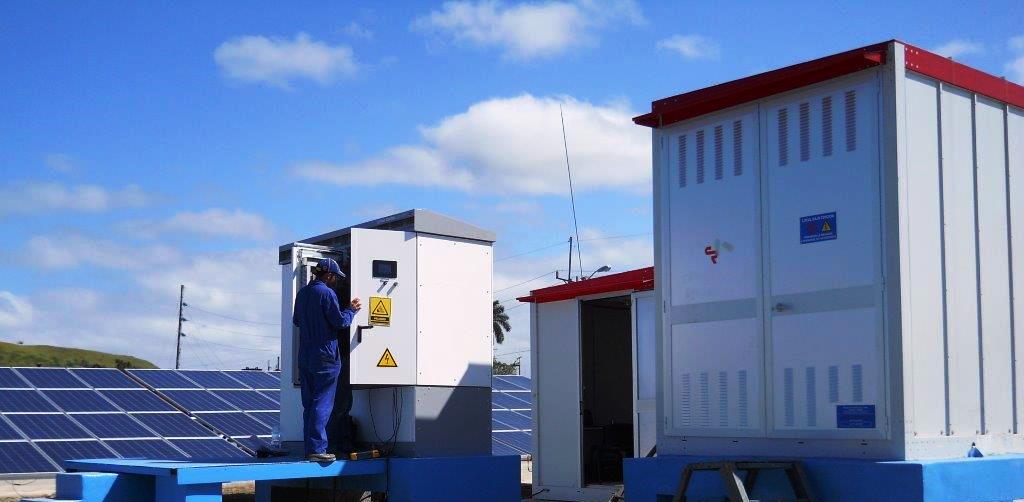

Guantanamo: 2 MW, n. 8.000 of photovoltaic modules, with a total power of 2.000kWp, medium-voltage ATR-Mix switchgears 24kV, STC-Box Solar Station 2.000 cabin, SCADA system, inverter.

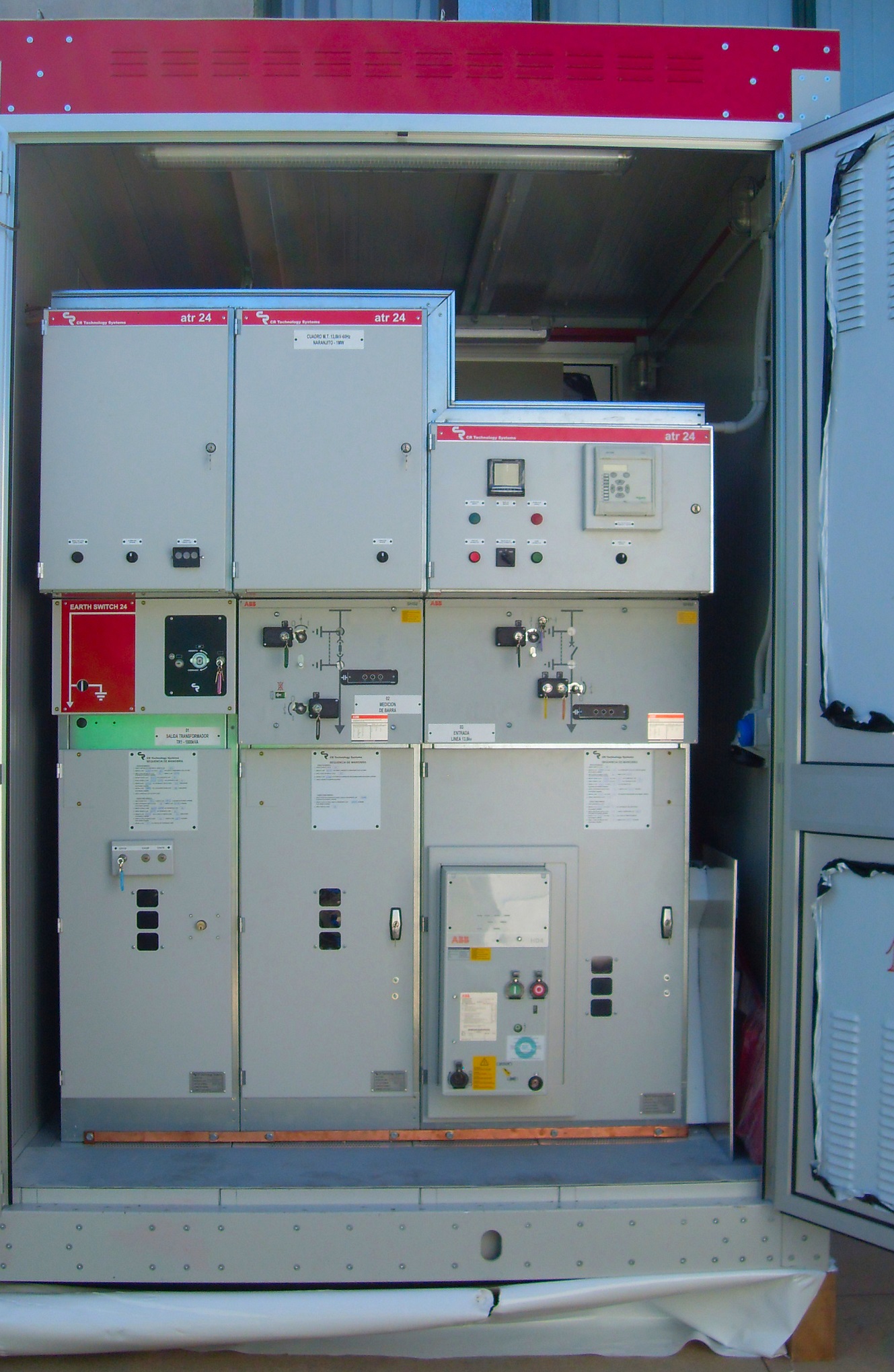

Naranjito (Havana): 1 MW, n. 4.000 of photovoltaic modules, with a total power of 1.000kWp, medium-voltage ATR-Mix switchgears 24kV, STC-Box Solar Station 1.000, SCADA system, inverter.
Isla de la Juventud: 1MW, n. 4.000 of photovoltaic modules, with a total power of 1.000kWp, medium-voltage ATR-Mix switchgears 36kV, STC-Box Solar Station 1.000, SCADA system, inverter.2
Guanabo (Havana): 500KW, n. 2.080 of photovoltaic modules, with a total power of 520kWp, medium voltage ATR-Mix switchgears 36kV, STC-Box 500-1.000 solar station, SCADA system, inverter.

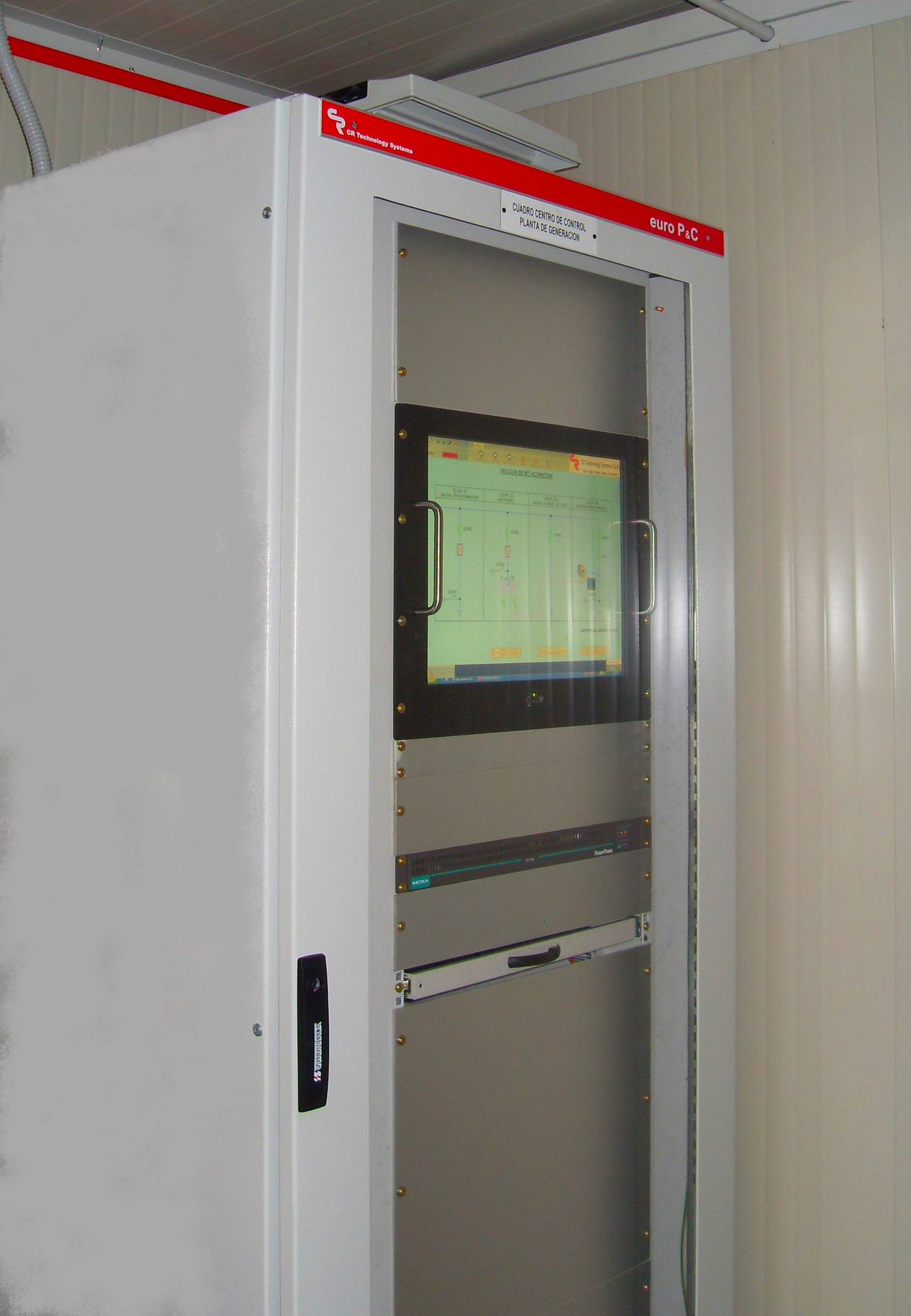

Thanks to the microgeneration of energy, the project has allowed greater autonomy in the production of electricity, with consequent advantages in terms of monitoring, control and continuity of service.
