Medium-Voltage (MV) Metal Clad Switchgears 36kV 2500A 40kA

Baghdad (Iraq)

Country

Iraq

Year

2018

Description

Design, supply and implementation of metal clad switchgears for energy production in the capital city of Iraq.

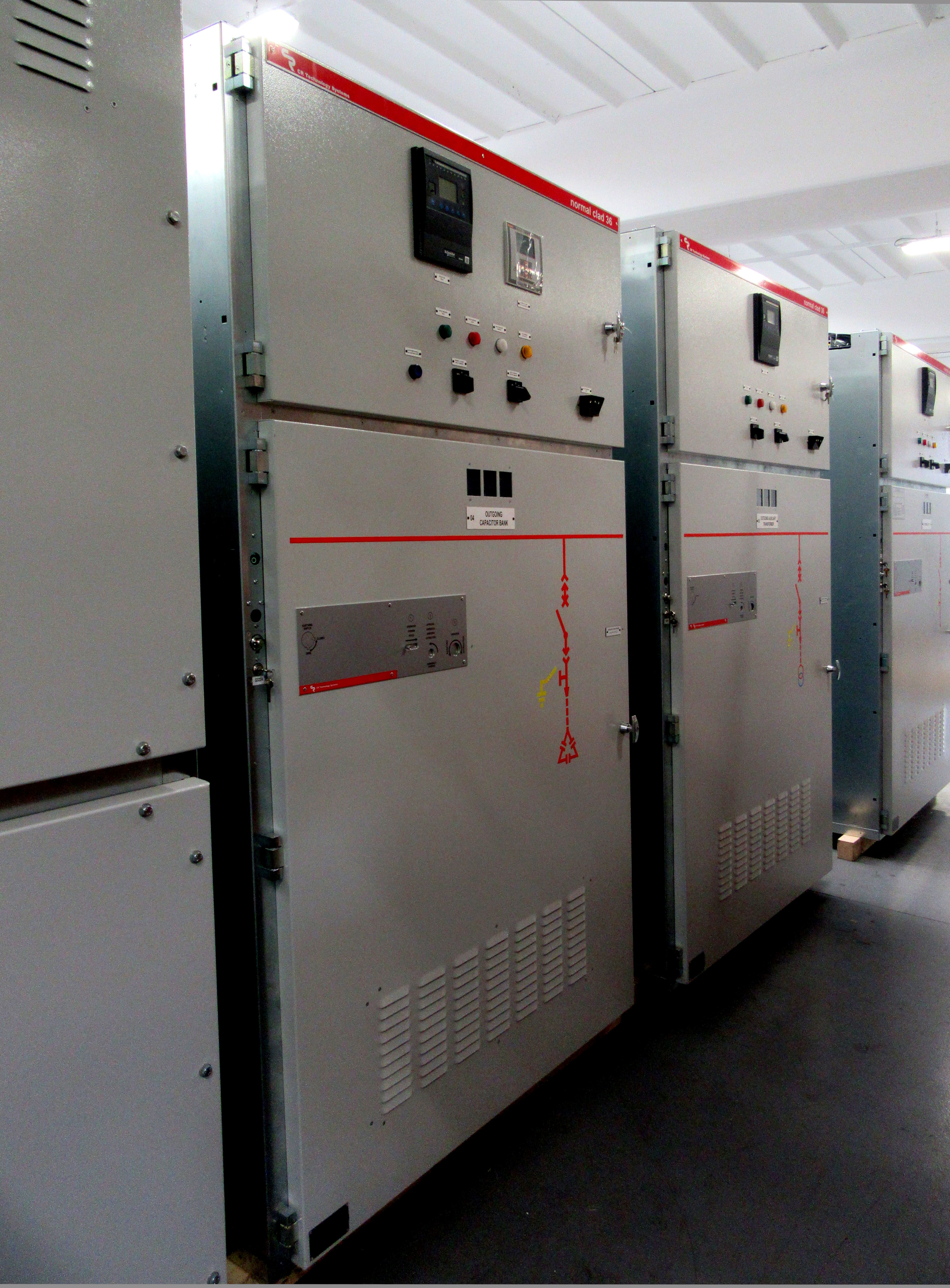

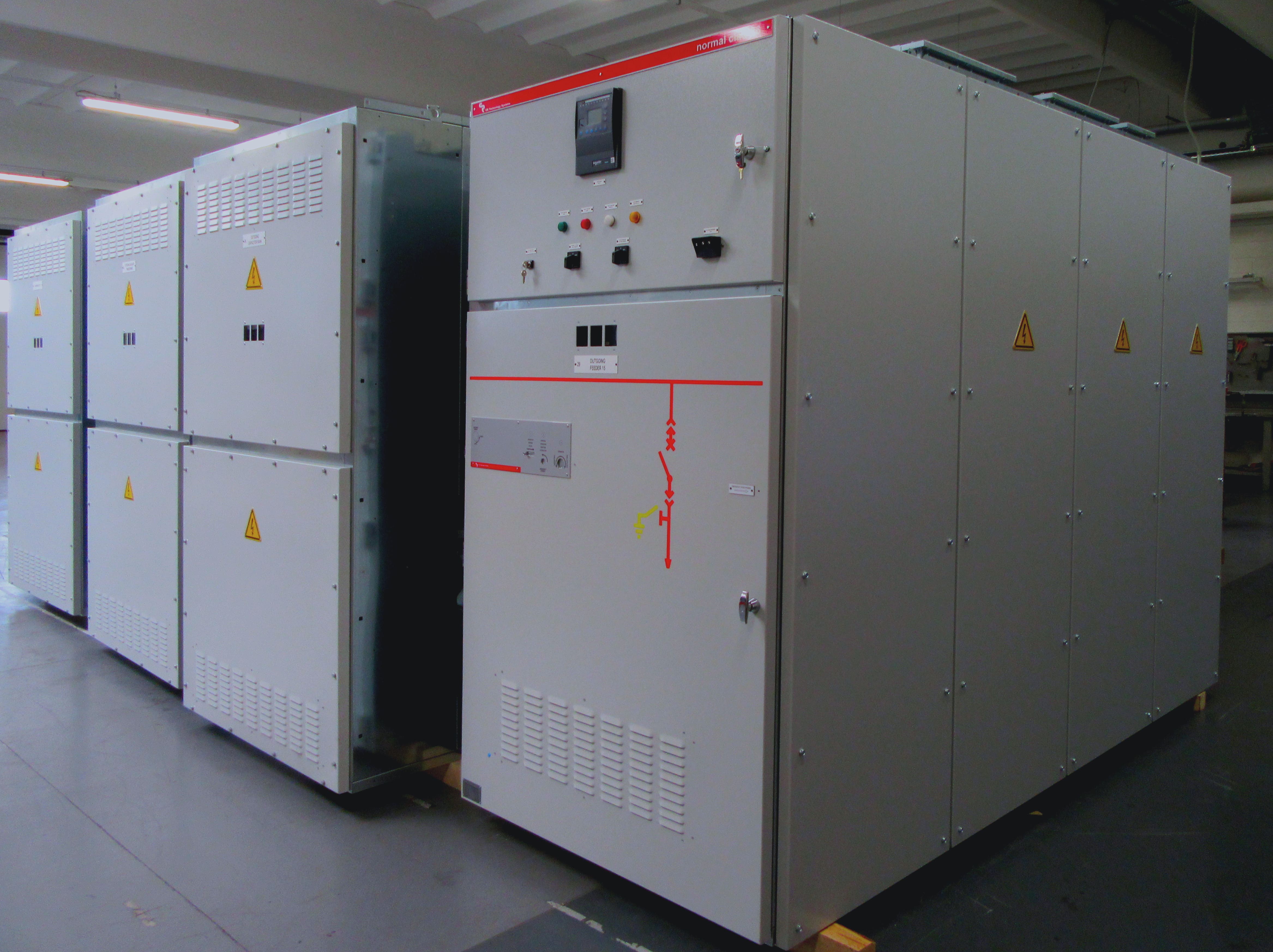

The project has involved the realization and supply of n. 58 medium-voltage Normal Clad cubicles 36kV 2500A 40kA (3s), insulated in SF6 gas (GIS). The cubicles are interconnected by a copper omnibus 2500A 55°C.
