HV/MV Mobile Substation 69-34.5/13.8-11.95kV 30MVA
Rio de Janeiro (Brazil)
Country
Year
Description
This important project includes the study, design, construction and supply of a mobile substation 69-34,5/13,8-11,95kV 30MVA for Enel Group, addressed to Rio de Janeiro (Brazil).

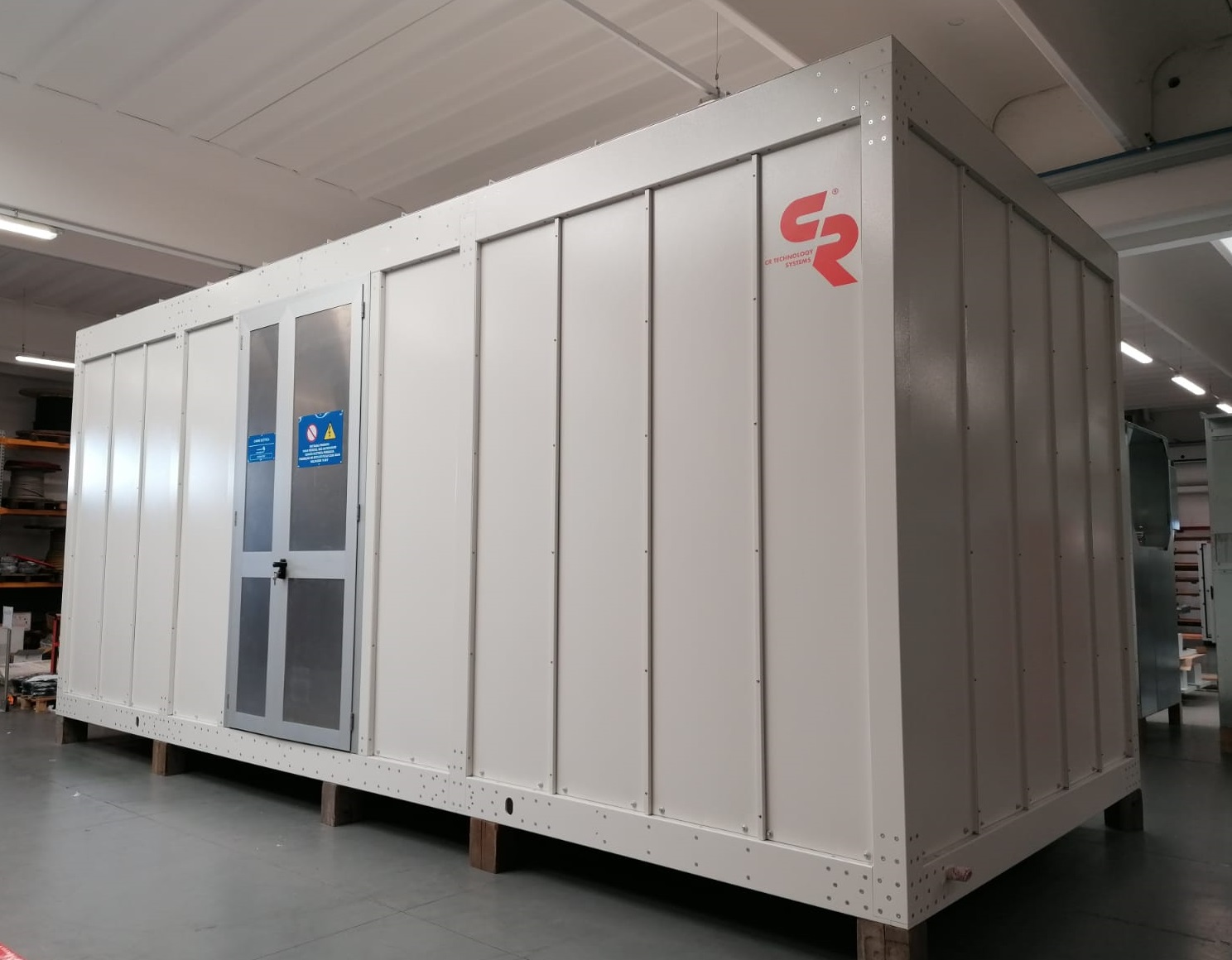

The trailer carries a power transformer, an ultra-light aluminum shelter, containing medium-voltage (MV) switchgear (n. 5 cubicles), low-voltage (LV) switchboard, SCADA system, and auxiliary equipment.
It is a perfect plug and play solution, built and assembled in our warehouse and ready for commissioning.
The light shelter material has been chosen also according to the road code, in order to allow the mobile substation to circulate freely on roads and bridges.

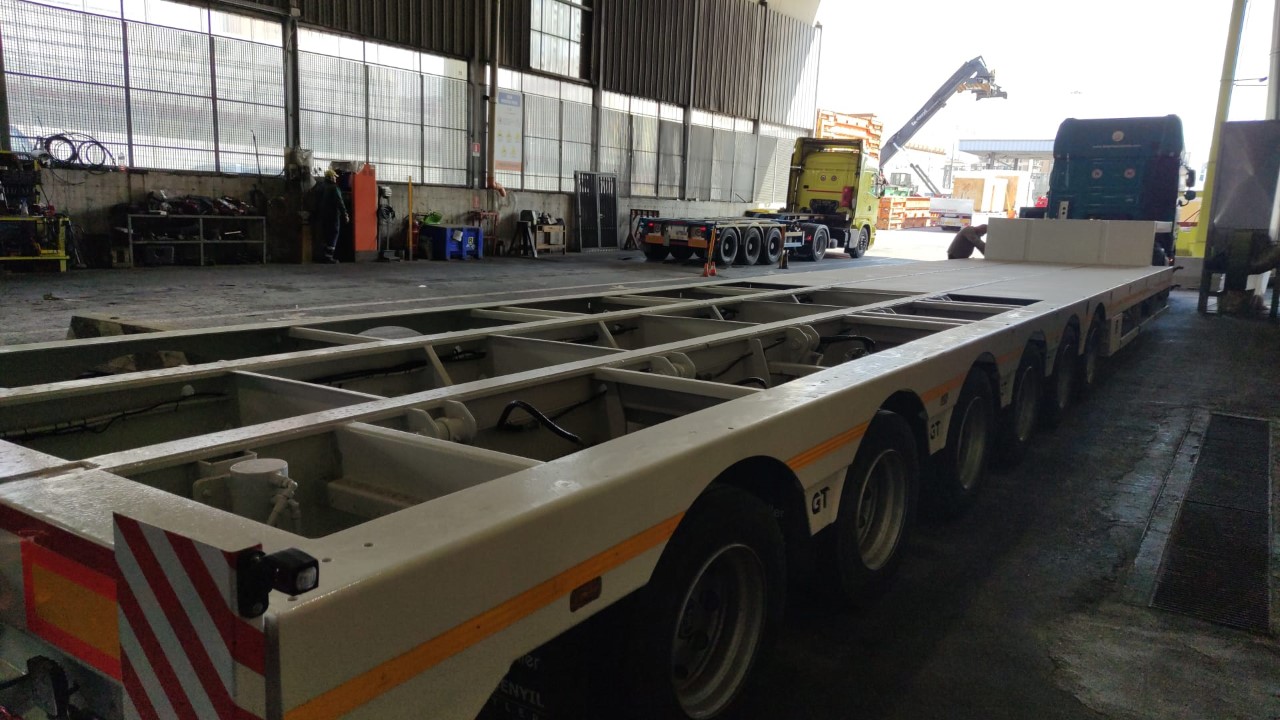

The large trailer has a payload of 74 tons and a length of 19 meters, in addition, it is composed of rotating axle shafts in order to smooth movements when cornering.
