HV/MV Mobile Substation 115/13.8 kV 10MVA
Aragua (Venezuela)
Country
Year
Description
The project has involved the study and construction of a mobile substation 115/13.8kV 10MVA, with a frequency of 60Hz, with the aim of guaranteeing the supply of electricity in a rural area of Venezuela.

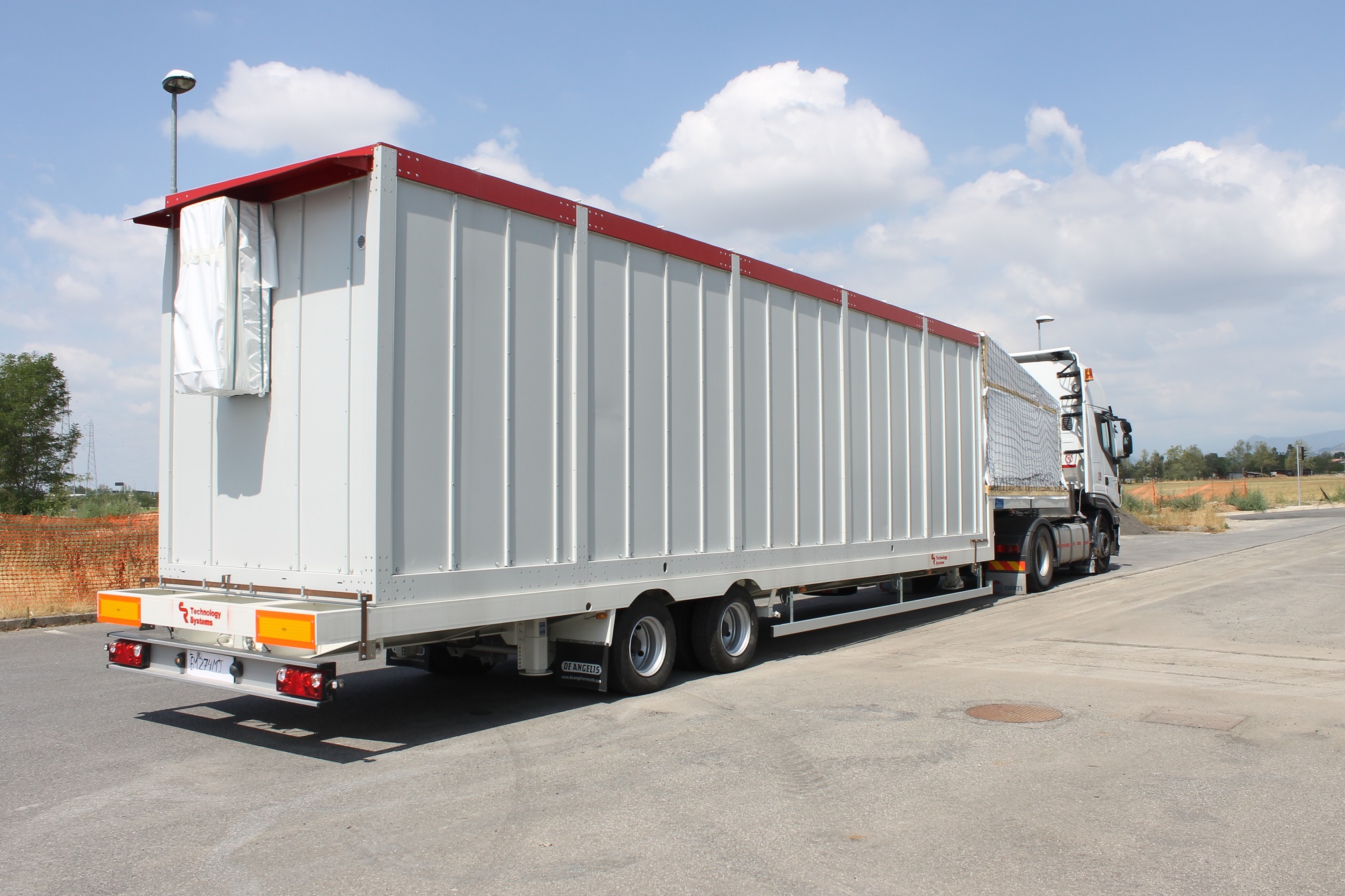

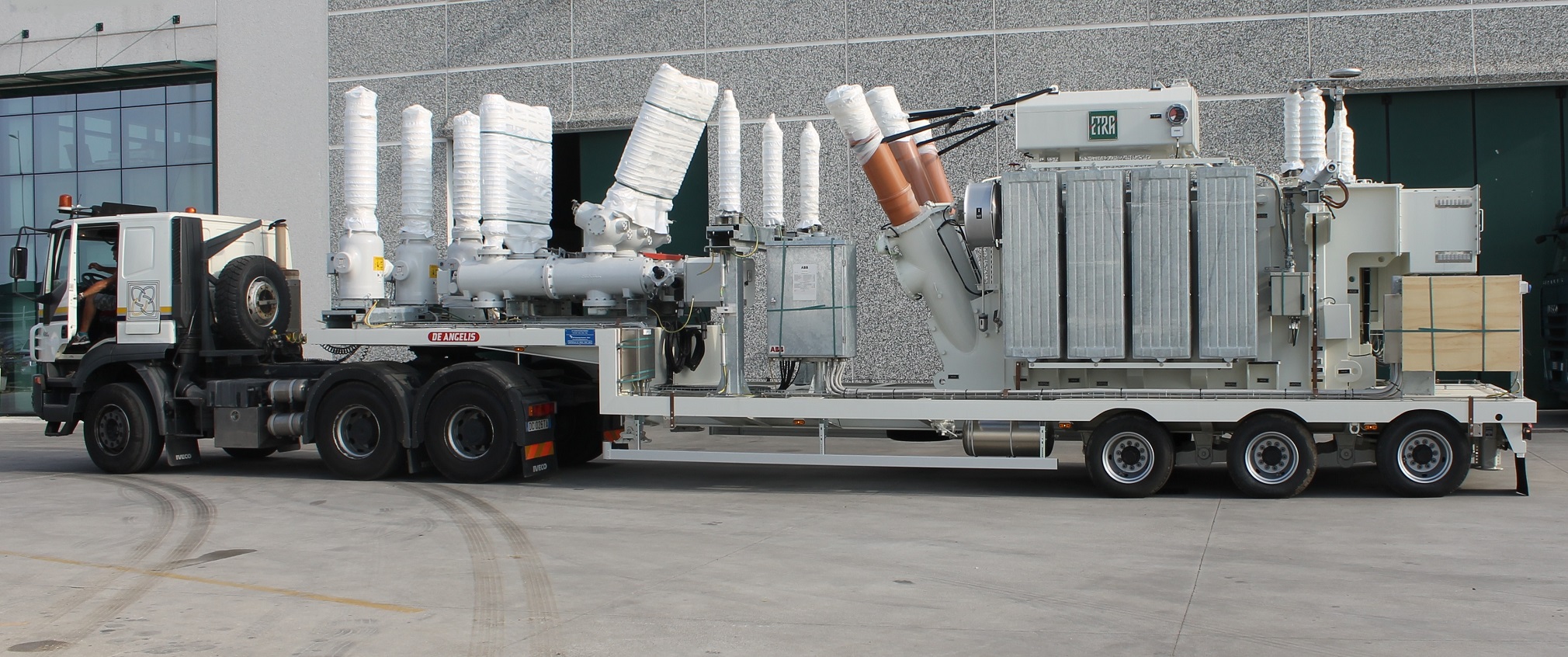

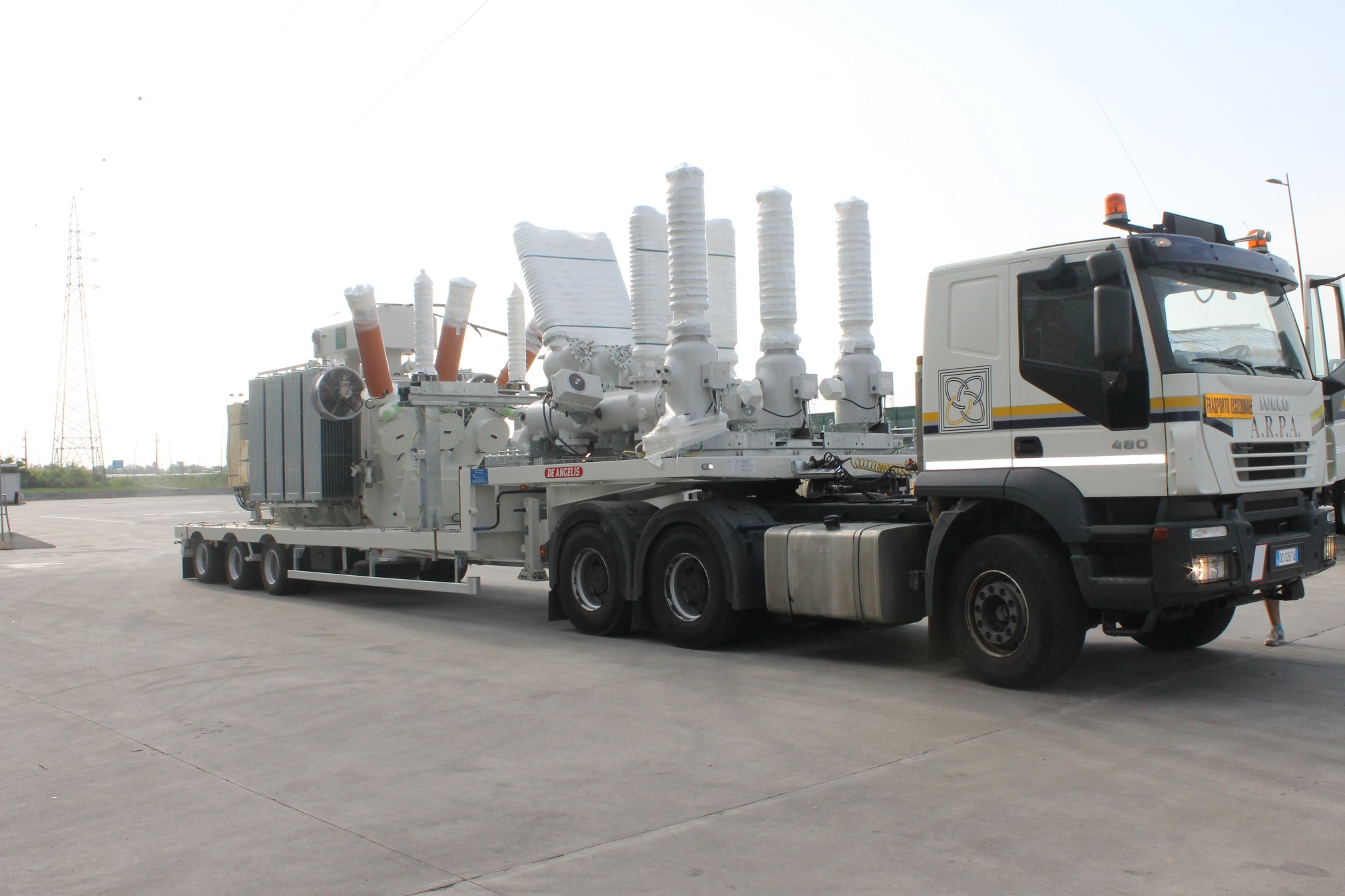

The project has counted with n. 9 metal-enclosed medium-voltage (MV) ATR cubicles 13.8kV 630A 16kA, with a frequency of 60Hz, a low-voltage (LV) Euro-SDS switchboard 400/230V 60Hz and a 110Vd.c. Furthermore, it has included a PASS M0 system 123kV, current transformers, voltage transformers, 10MA 115/13,8kV power transformer, surge protectors, auxiliary transformers, modular shelter (with lighting and air conditioning system), auxiliary equipment.
