MV E-House 17.5kV for floating solar plant

Alqueva (Portugal)

Country

Portugal

Year

2022

Description

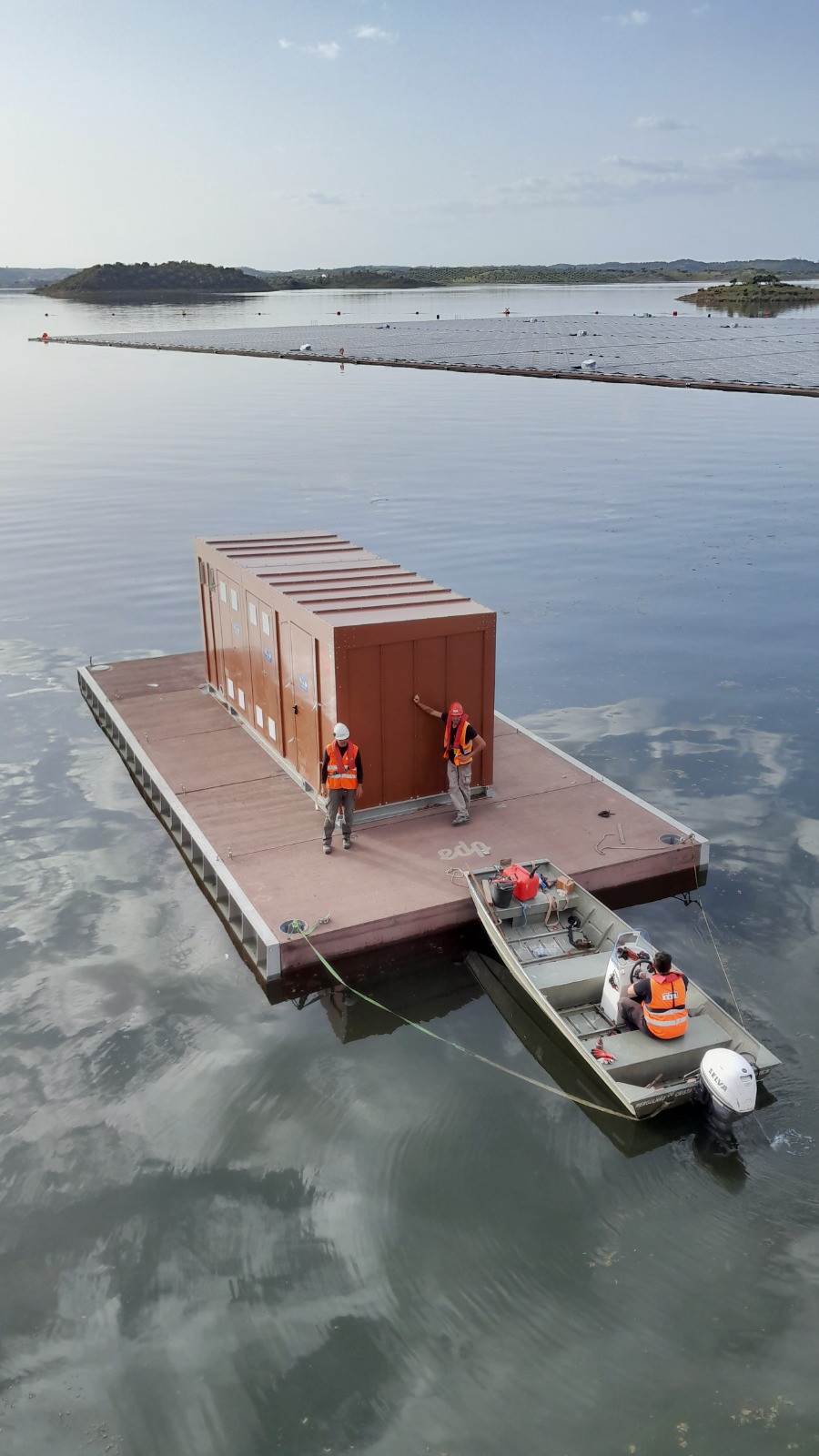

Study, design, and construction of an IP54 2×2.5MVA E-House, STC-Box, destined for the floating solar system in Alqueva, Portugal.

The photovoltaic plant includes over 12.000 photovoltaic panels, for a total of 4MW, with an annual production capacity of 7GWh. The park will produce enough energy to supply 25% of consumers in the entire region.

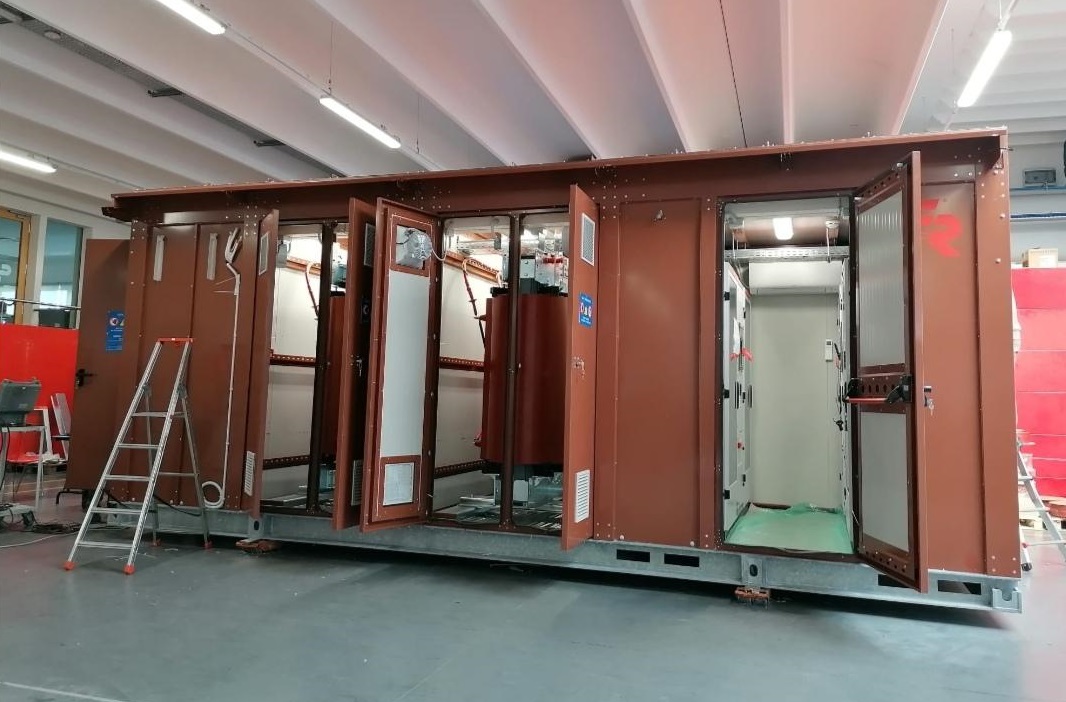

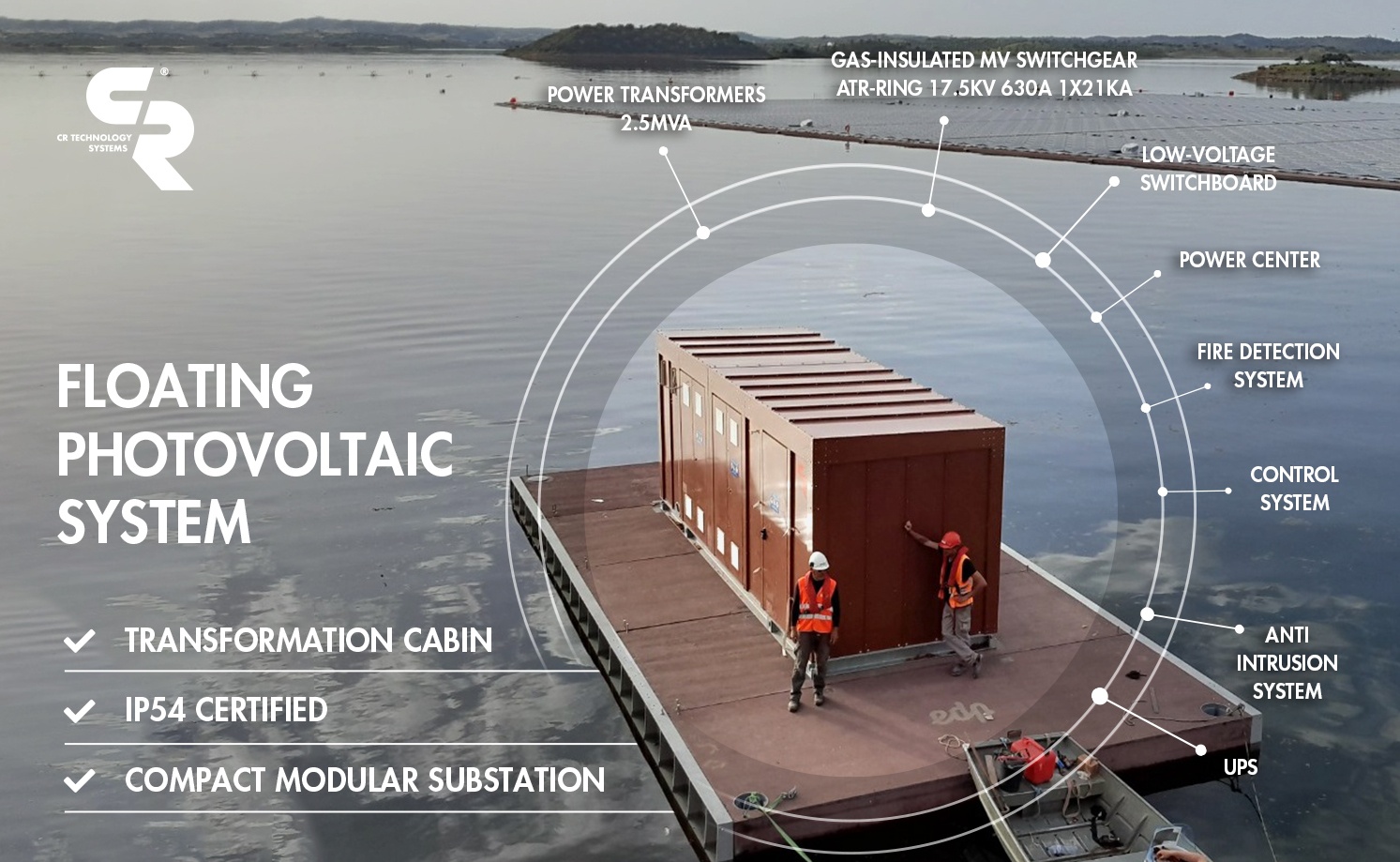

Our certified solution IP54 plug-in modular substation is equipped with:

  • Gas-insulated MV switchgear ATR-Ring 17.5kV 630A 1x21kA
  • Power Center PC 440Vac-2500A-50Hz-32kA
  • Power transformers 2.5MVA
  • Low-voltage switchboard
  • Control system
  • UPS
  • Anti-intrusion system
  • Fire detection system and accessories for manual extinguishing
  • Air-conditioners and forced ventilation for transformers
  • Auxiliary equipment
In consideration of its use, we have carried out IP54 and IK10 tests to ensure a full protection of the e-House.
