Elevating substation 0.44/13.8-11.4kV for generators
Rio de Janeiro (Brazil)
Country
Year
Location
Solutions
Products
Description

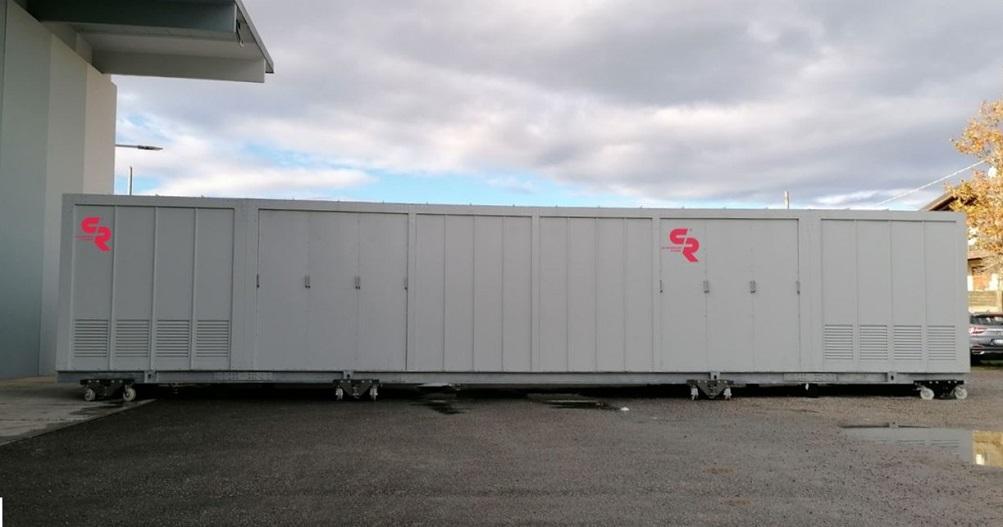

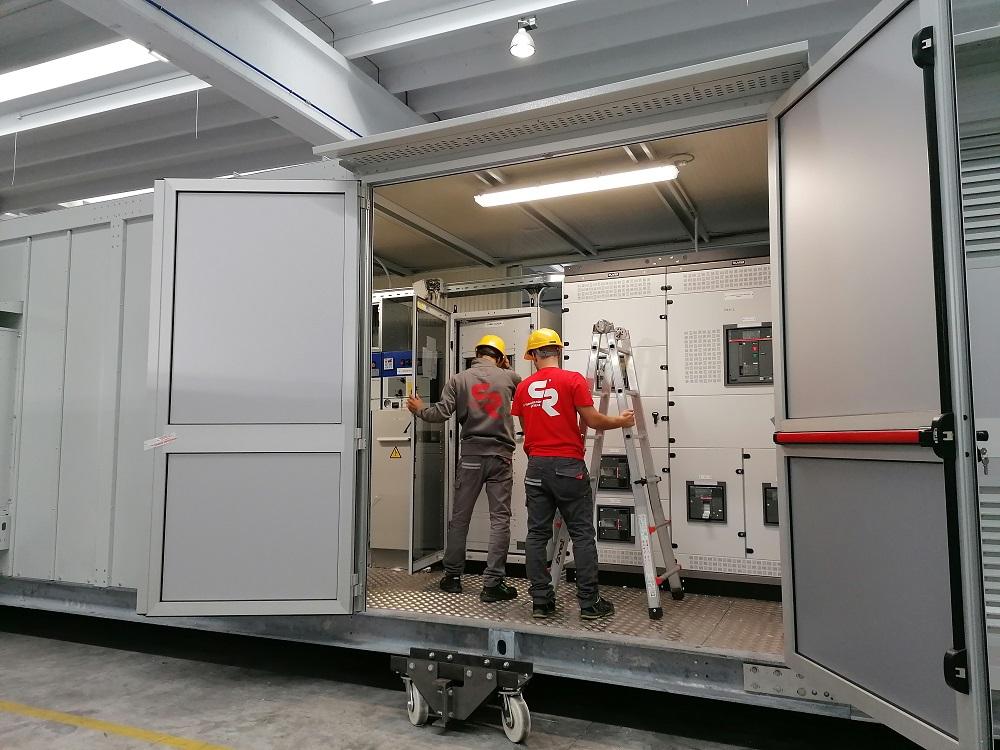

For Enel Brazil, we have designed, manufactured and supplied an elevating substation 0.44/13.8-11.4kV with advanced coupling systems for generators addressed to Rio de Janeiro.
Our state-of-the-art substation is equipped with cutting-edge technology, including:

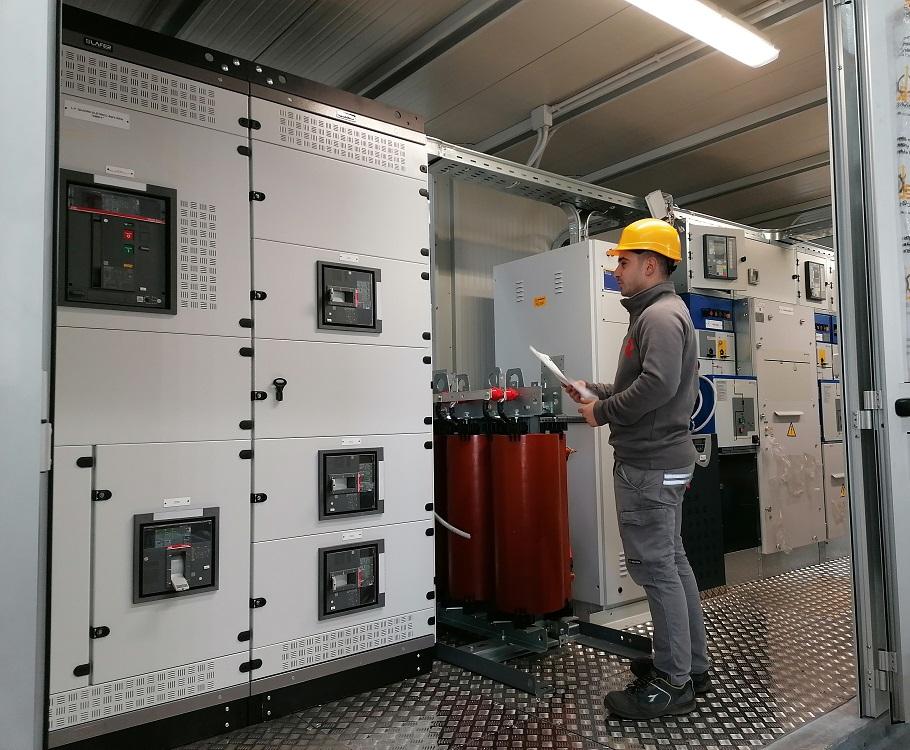

- MV (medium-voltage) GIS ATR-Ring switchgear 24kV 630A 16kA
- LV (low-voltage) switchboard Euro P&C

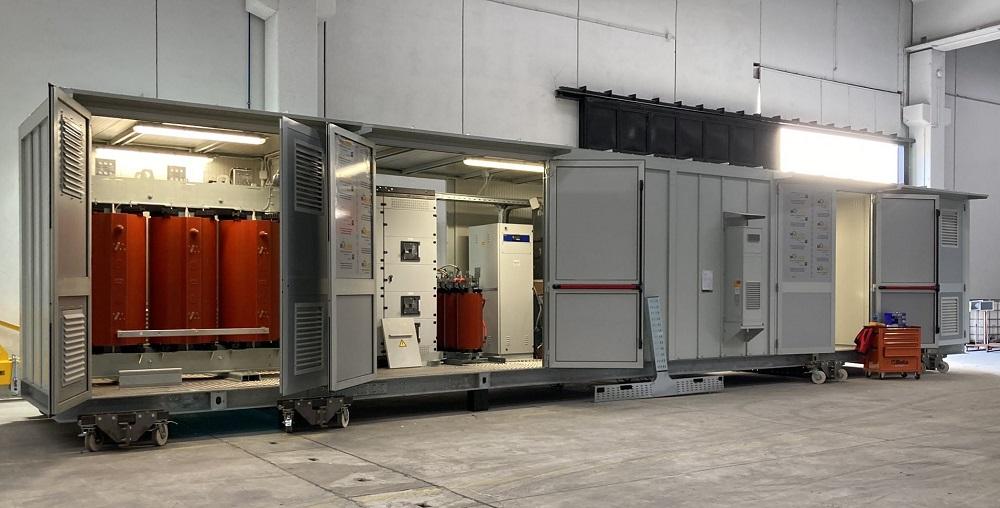

- N. 2 dry-type Power transformer 3500kVA
- Auxiliary transformer 100kVA 20kVA/0.4kV
- SCADA system for real-time monitoring and control
- Interconnecting cables
